Description: • CERTIFIED THUNDERBOLT™ 5 - Our highest model TB5 device, fully certified for guaranteed compatibility and peak performance. • EXPAND STORAGE HASSLE-FREE - Add more space with an easy-to-use SSD slot, giving your computer the same lightning-fast speed as its built-in storage. • POWER YOUR WHOLE SETUP - Delivers 140W to your laptop + 30W to phones/tablets via two front-facing USB-C® ports (no extra chargers needed). • THUNDERBOLT™ SHARE INCLUDED - Comes with a Thunderbolt™ Share license to connect two computers directly for seamless file transfer and display control.
Features:
Adopting Barlow Ridge solution
Compatible with SSDs in 2280, 2260, 2242, and 2230 sizes
supporting PCIe Gen4x4 (16Gbps, 4 lanes) with maximum read and
write speeds of 6000MB/s
Designed for TB5/TB4/USB4 based PCs and compatible with TB3/
DP-Alt-mode PCs
Support Thunderbolt™ 5 max 80Gbps or 120Gbps for high speed data
and outstanding video transfer
Downstream ports allow you to cascade Thunderbolt™ devices up to 5
levels
Downstream ports support max. 80Gbps or 120Gbps data transfer
support Type-C® dongle/adapter/dock
Support max 10K60Hz for one video output and to be more efficient
5K60Hz or 4K144Hz for triple
Self-powered from DC power adapter with max. 180Watt for host and
Hub
Made from recycled materials (PCR). Sustainable and durable
The device has standard and nano Kensington lock slots for a secure

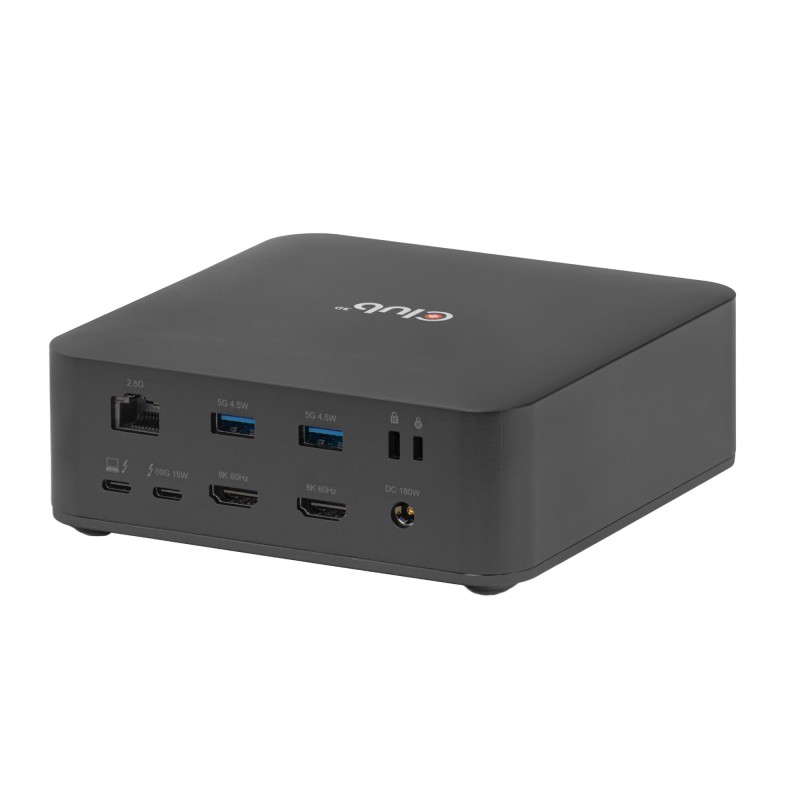

CLUB3D CSV-2562 13-1 Thunderbolt 5 Docking Station M.2 SSD 2x HDMI 8K60Hz Thunderbolt Share Certified 180W. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. P
Performance (Product colour)
Black
Ports & interfaces (Connectivity technology)
Wired
Weight & dimensions (Width)
140 mm
Weight & dimensions (Depth)
140 mm
Weight & dimensions (Height)
50 mm
Weight & dimensions (Weight)
794 g
Packaging data (Package width)
302 mm
Packaging data (Package depth)
59 mm
Packaging data (Package height)
169 mm
Packaging data (Package weight)
1598 g
Packaging content (Cables included)
Thunderbolt
Ports & interfaces (Microphone in)
No
Logistics data (Harmonized System (HS) code)
8473 3020
Performance (On/off switch)
Yes
Sustainability (Sustainability certificates)
SCS Product Category Rule (PCR)
Performance (Housing material)
Plastic
Packaging data (Quantity per pack)
1 pc(s)
Ports & interfaces (HDMI ports quantity)
2
Ports & interfaces (USB 2.0 ports quantity)
3
Network (Ethernet LAN)
Yes
Ports & interfaces (Headphone outputs)
1
Ports & interfaces (Headphone connectivity)
3.5 mm
Ports & interfaces (USB Power Delivery up to)
140 W
Performance (HD type)
8K Ultra HD
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
3
Power (Power source type)
DC
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
