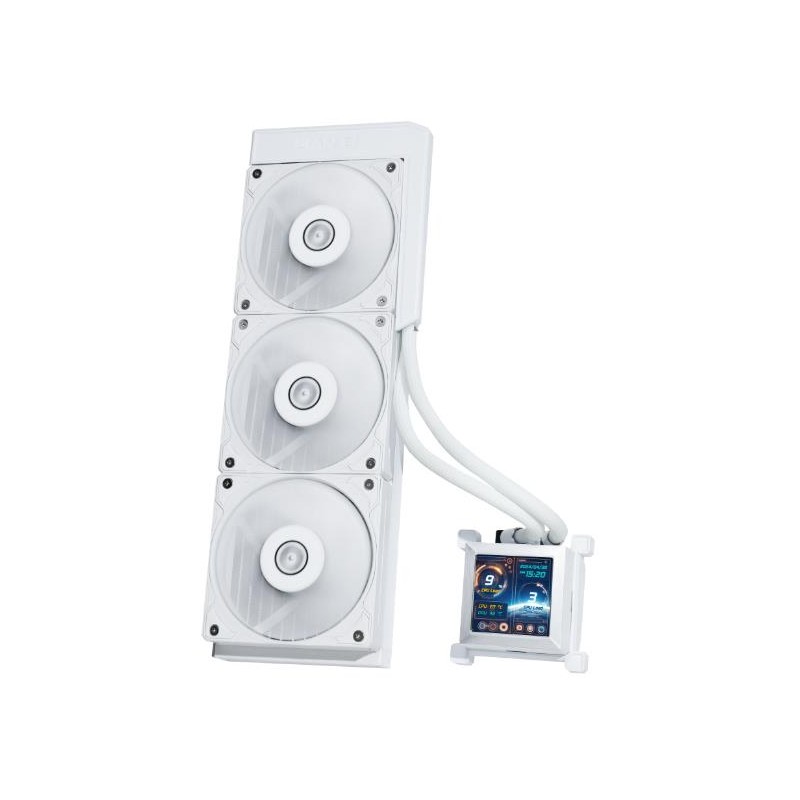

Model name HydroShift LCD 360S, 120 mm, Type All-in-one liquid cooler, Supported processor sockets LGA 1700/Socket AM4/Socket AM5, Suitable location Computer case, Rotational speed (max) 2500 RPM, Maximum airflow 73.14 cfm, Bearing type Fluid Dynamic Bearing (FDB), Colour White, Radiator material Aluminum, Number of fans 3 fan(s), Illumination LED Yes, Illumination colour Multi, Display type LCD, Radiator height 27 mm, Waterblock height 59 mm, Noise level 29.8 dB
Unleash Power, Elevate Style Experience a PC aesthetic revolution with HydroShift AIO’s side-mounted coolant pathway, integrating cooling tubes with the radiator for a sleek, flawless look.
SIDE-MOUNTED DESIGN The HydroShift AIO features an innovative side-mounted design for its cooling tubes, which are snugly attached to the side of the radiator. Combined with several thoughtful design elements, this ensures a clean and streamlined appearance for the entire cooling setup once installed.
Pre-Installed Mounting Brackets Fixed brackets on the radiator ensure the coolant tubes stay securely in place, with an additional bracket included for cases with limited top-mount space.
Server-Grade Ribbed Tubes These highly durable and flexible tubes allow tight bends without compromising internal diameter or flow rate.
Cable Clips Used to organize the cooling tubes and cables extending from the pump, ensuring a smooth and cohesive overall appearance.
Pump cover Used to conceal the pump bracket, maintaining a sleek and clean aesthetic throughout.
Dual Direction L-Shaped Shrouds Customizable for either side of the radiator to maintain a consistent and stylish appearance.
MINIATURE YET MIGHTY HydroShift AIO delivers near-identical performance to the GA II Performance while boasting a significantly reduced size. The new design also eliminates the water isolation chamber, reducing the size of the water chamber.
Compared to the GA II LCD that uses Asetek’s 8th Gen solution, the HydroShift AIO is quieter and more efficient. Our tests indicate that when benchmarking the Intel® Core™ i9 processor 14900K at 280W, the CPU temperature for the HydroShift AIO is reduced by 2.5°C compared to the GA II LCD. At the same time, acoustic noise is lowered by 3dbA.
ENHANCED DISPLAY Featuring a 480×480 resolution, 500 nits brightness, and 24-bit full color, customizable via L-Connect 3.
Real-time monitoring The real-time monitoring feature displays load, temperature, frequency, and other CPU/GPU info, with an adjustable layout. The number of sensors has increased from 2 to 4 compared to the GA II LCD version.
Dynamic effects Once the monitoring information layout is set, dynamic effects can be added for enhancement. The intensity and speed of these effects can be freely adjusted, or they can be set to change in response to the monitored hardware information.
Captured screenshots or recorded videos Capture and display images with the screenshot feature. The screen recording function lets you loop selected video parts, which can also serve as backgrounds for hardware monitoring info.
New theme The HydroShift AIO release brings L-Connect 3 updates with multiple themes like Atmosphere, Planet City, and Steampunk, also compatible with the GA II LCD series. These themes offer unique visuals and preset layouts for hardware monitoring.
OPTIMIZED CABLE MANAGEMENT Compared to previous AIO products, the HydroShift AIO has optimized its cable management.
The fan cables are integrated into the cooling tubes, simplifying the connection process.
The USB cable is now also integrated into the pump.
6-YEAR WARRANTY With a 6-year warranty, including the fans and the controller, and compensation for hardware damage due to leakage (non-manmade causes) within three years, HydroShift AIO prioritizes both performance and peace of mind.
Shifted AIO tubes for a near-tubeless aesthetic
Features server-style ribbed tubes for tight bending radius
Performance-enhanced and noise-optimized pump
Features a 2.88” IPS LCD screen with a 480×480 resolution
Powered by L-Connect 3 for screen display content
Pre-installed daisy-chainable radiator fans or UNI FAN TL fans
