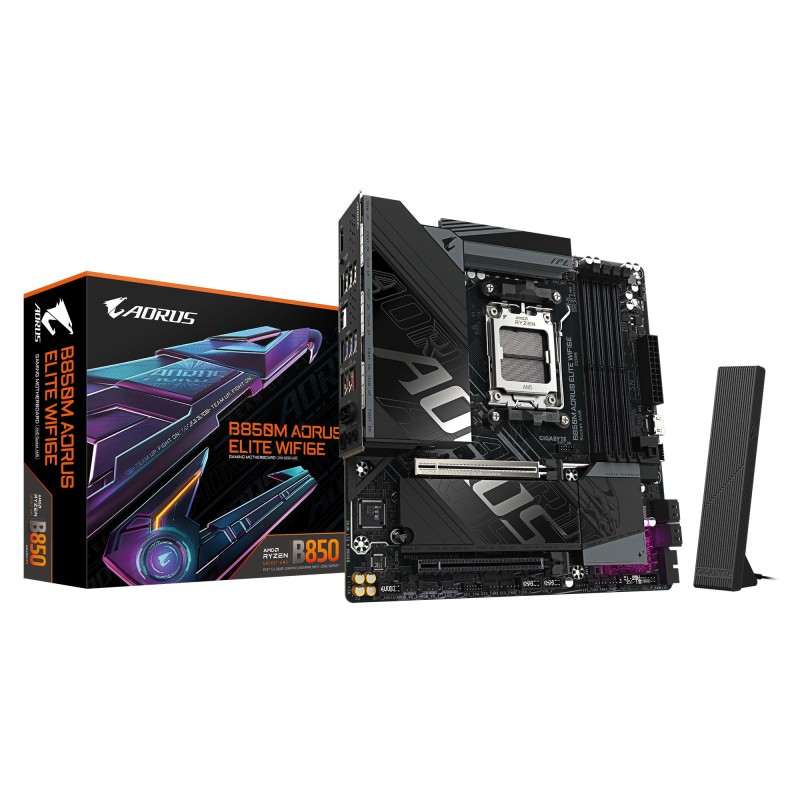

Emaplaat GIGABYTE AMD B850 Socket AM5 micro ATX RAM DDR5-SDRAM 4xSlots Wi-Fi Yes Bluetooth Yes 2xNumber of M.2 (M) slots B850M

Lisainfo

Müüja koduleht

https://www.gigabyte.com/Motherboard/B850M-AORUS-ELITE-WIFI6E-rev-1x

Garantija

36

Mudel

B850M AORUS ELITE WIFI6E (rev. 1.x)

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.27

Units per Shipping Box

8

Unit Calculated Volume

0.006549 cubm

Unit Calculated Weight

1.96 kg

Summary

GIGABYTE B850M AORUS ELITE WIFI6E Motherboard - AMD Ryzen 9000 Series CPUs, 12+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Com

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1972.5 g

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Other features (Weight)

1780 g

Network (Bluetooth)

Yes

Network (Bluetooth version)

5.3

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Features (Product colour)

Black

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Packaging content (Screws included)

Yes

Processor (Processor manufacturer)

AMD

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Memory (Maximum internal memory)

256 GB

Memory (Memory channels)

Dual-channel

Network (WLAN controller model)

Realtek RTL8852CE

Network (LAN controller)

Realtek RTL8125

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

4

Memory (Supported memory clock speed (max))

8200 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,PCI Express 5.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B850

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

2

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

1.4

Rear panel I/O ports (S/PDIF out port)

Yes

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

5

Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Features (Audio chip)

Realtek ALC1220-VB

Features (Power source type)

ATX

Graphics (DirectX version)

12.0

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Graphics (Maximum resolution)

3840 x 2160 pixels

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of water pump connectors)

2

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

25110

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

22110

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Packaging content (Antenna included)

Yes

Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Rear panel I/O ports (Digital audio optical out)

1

Eriviited

ean13

4719331871123

MPN

1447470
