Kirjeldus

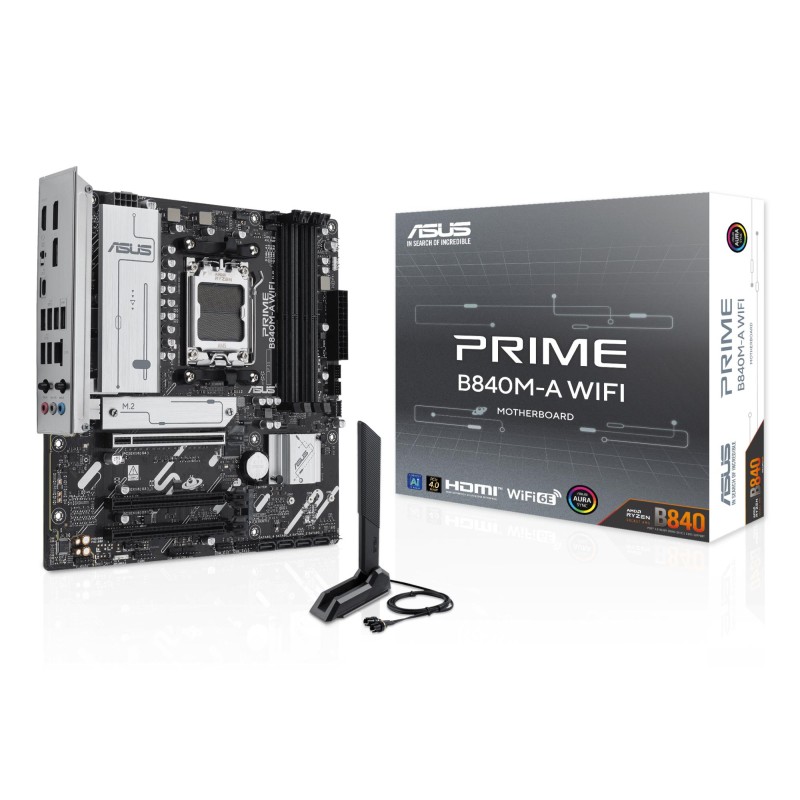

B840M-A WIFI
Üldine informatsioon
Tootekood
PRIME B840M-A WIFI
Tarneaeg 2-5 tööpäeva.
20 Tooted
Lisainfo
Müüja koduleht
https://www.asus.com/motherboards-components/motherboards/all-series/prime-b840m-a-wifi/
Garantija
36
Mudel
PRIME B840M-A WIFI
Category Code
MBA
Unit Box Height
0.273
Unit Box Length
0.281
Unit Box Width
0.071
Units per Shipping Box
10
Unit Calculated Volume
0.006245 cubm
Unit Calculated Weight
1.55 kg
Summary
ASUS PRIME B840M-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memo
Weight & dimensions (Width)
244 mm
Weight & dimensions (Depth)
244 mm
Packaging data (Package width)
275 mm
Packaging data (Package depth)
275 mm
Packaging data (Package height)
67.5 mm
Packaging data (Package weight)
1520 g
Packaging content (Cables included)
SATA
Network (Bluetooth)
Yes
Network (Bluetooth version)
5.3
Network (Ethernet LAN)
Yes
Network (Wi-Fi)
Yes
Network (Wi-Fi standards)
Wi-Fi 6E (802.11ax)
Packaging content (Screws included)
Yes
Processor (Processor manufacturer)
AMD
Network (Top Wi-Fi standard)
Wi-Fi 6E (802.11ax)
Features (Component for)
PC
Memory (Maximum internal memory)
192 GB
Memory (Memory channels)
Dual-channel
Processor (Compatible processor series)
AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor (Processor socket)
Socket AM5
Processor (Supported processor sockets)
Socket AM5
Memory (Memory slots type)
DIMM
Memory (Number of memory slots)
4
Memory (Supported memory types)
DDR5-SDRAM
Memory (Unbuffered memory)
Yes
Storage controllers (Number of HDDs supported)
4
Storage controllers (Number of storage drives supported)
7
Storage controllers (Supported storage drive interfaces)
M.2,SATA III
Storage controllers (Supported storage drive types)
HDD & SSD
Graphics (Parallel processing technology support)
Not supported
Internal I/O (12V power connector)
Yes
Internal I/O (ATX Power connector (24-pin))
Yes
Internal I/O (CPU fan connector)
Yes
Internal I/O (Front panel audio connector)
Yes
Internal I/O (Front panel connector)
Yes
Internal I/O (Number of chassis fan connectors)
3
Internal I/O (Number of COM connectors)
1
Internal I/O (Number of SATA III connectors)
4
Internal I/O (S/PDIF out connector)
Yes
Internal I/O (TPM connector)
Yes
Internal I/O (USB 2.0 connectors)
2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
2
Rear panel I/O ports (DisplayPorts quantity)
2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
1
Rear panel I/O ports (HDMI ports quantity)
1
Rear panel I/O ports (USB 2.0 ports quantity)
4
Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)
2
Rear panel I/O ports (WiFi-AP antenna jack)
1
Network (Ethernet interface type)
2.5 Gigabit Ethernet
Features (Audio output channels)
7.1 channels
Features (Motherboard chipset)
AMD B840
Features (Motherboard chipset family)
AMD
Features (Motherboard form factor)
micro ATX
Features (Windows operating systems supported)
Windows 10 x64/Windows 11
Expansion slots (Number of M.2 (M) slots)
3
Expansion slots (PCI Express x16 (Gen 4.x) slots)
1
BIOS (BIOS memory size)
256 Mbit
BIOS (BIOS type)
UEFI AMI
Storage controllers (RAID levels)
0/1/10/5
Storage controllers (RAID support)
Yes
Memory (ECC сompatibility)
ECC & Non-ECC
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity)
1
Expansion slots (1st M.2 highest PCI Express generation)
4.0
Expansion slots (1st M.2 largest key size)
2280
Expansion slots (2nd M.2 highest PCI Express generation)
4.0
Expansion slots (2nd M.2 largest key size)
2280
Expansion slots (3rd M.2 highest PCI Express generation)
3.0
Expansion slots (3rd M.2 largest key size)
2280
Expansion slots (PCI Express x16 (Gen 3.x) slots)
2
Packaging content (Antenna included)
Yes
Eriviited
ean13
4711387797143
MPN
1434704
