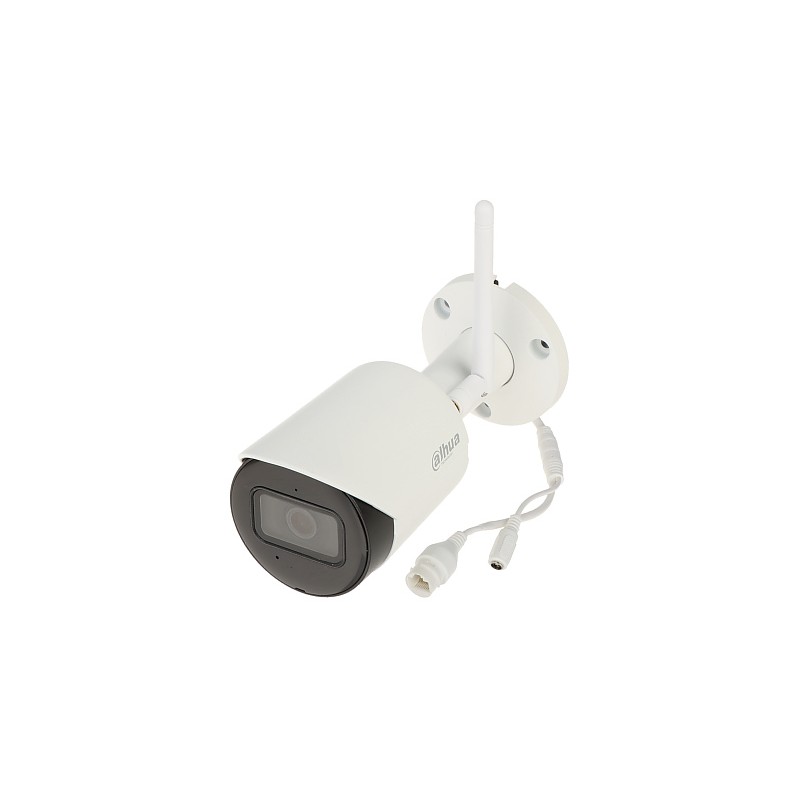

IP camera with efficient H.265, H.264 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p
The used Wi-Fi module allows to remote communication with camera for max. distance up to 80 m
The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance)
Camera is according to IP67 Index of Protection norm
In order to obtain optimal performance of DAHUA Wi-FI series cameras, it is recommended to use DAHUA Micro SD memory cards
Access by a cloud (P2P) Android: DMSS free application iOS (iPhone): DMSS free application
Default IP address:
DHCP
Default admin user / password:
admin / - The administrator password should be set at the first start
Web browser access ports:
80, 37777
PC client access ports:
37777
Mobile client access ports:
37777
ONVIF port:
80
RTSP URL:
rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream
Main features:
Wi-Fi Module, Range : 80 m (open area) ; Antenna - SMA socket D-WDR - Wide Dynamic Range3D-DNR - Digital Noise ReductionROI - improve the quality of selected parts of imageBLC - configurable Back Light CompensationAuto White Balance AGC - Automatic Gain Control Day/night mode ICR - Movable InfraRed filter Mirror - Mirror image Motion Detection - max. 4 zones - Human detection
