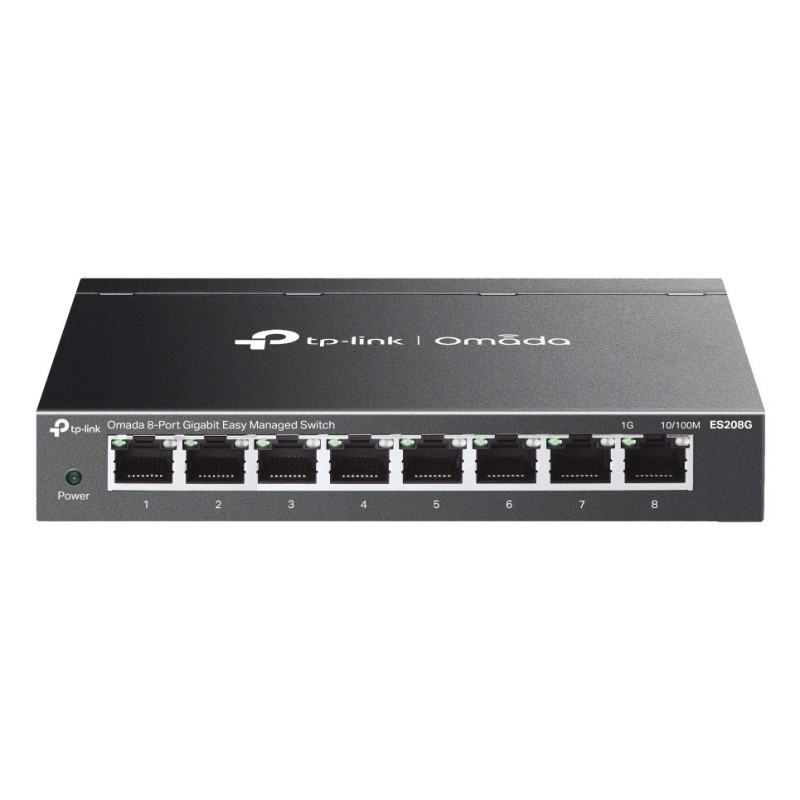

Switch TP-LINK Omada ES208G Type L2 ES208G

Data sheet

Vendor Homepage

https://www.omadanetworks.com/en/business-networking/omada-switch-easy-managed/es208g/

Model name

ES208G

Garantija

60

Series

Omada

Category Code

SWI

Unit Box Height

0.13

Unit Box Length

0.19

Unit Box Width

0.09

Units per Shipping Box

1

Unit Calculated Volume

0.002223 cubm

Unit Calculated Weight

0.654 kg

CnCode

85176200

Summary

TP-Link Omada ES208G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Netw

Weight & dimensions (Width)

158 mm

Weight & dimensions (Depth)

100.7 mm

Weight & dimensions (Height)

25.4 mm

Power (Power source)

DC

Packaging data (Package type)

Box

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

-5 - 45 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (Power consumption (max))

2.7 W

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Power (Input current)

0.6 A

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Packaging data (AC adapter included)

Yes

Performance (Mean time between failures (MTBF))

1141726 h

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3at/IEEE 802.3i/IEEE 802.3x

Management features (Cloud-managed)

Yes

Performance (Flash memory)

64 MB

Management features (Switch layer)

L2

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

8

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

11.9 Mpps

Data transmission (Switching capacity)

16 Gbit/s

Design (Rack mounting)

No

Power (DC input voltage)

5 V

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

No

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Security (DHCP features)

DHCP client

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

15000

Data transmission (Jumbo frames support)

Yes

Design (Stackable)

No

Design (Wall mountable)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

9.09 BTU/h

Performance (Fanless)

Yes

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

8

Network (Number of VLANs)

32

Network (Virtual LAN features)

MTU VLAN/Port-based VLAN/Tagged VLAN

Security (Loop protection)

Yes

Security (IGMP snooping)

Yes

Security (Queue scheduling algorithms)

Weighted Round Robin (WRR)

Power (Surge protection)

Yes

Power (Surge protection voltage)

6 kV

Performance (Firmware upgradeable)

Yes

Management features (Unified static configuration)

Yes

Network (Fast leave)

Yes

Network (Zero Touch Provisioning (ZTP))

Yes

Specific References

ean13

1210002600668

MPN

1440333
