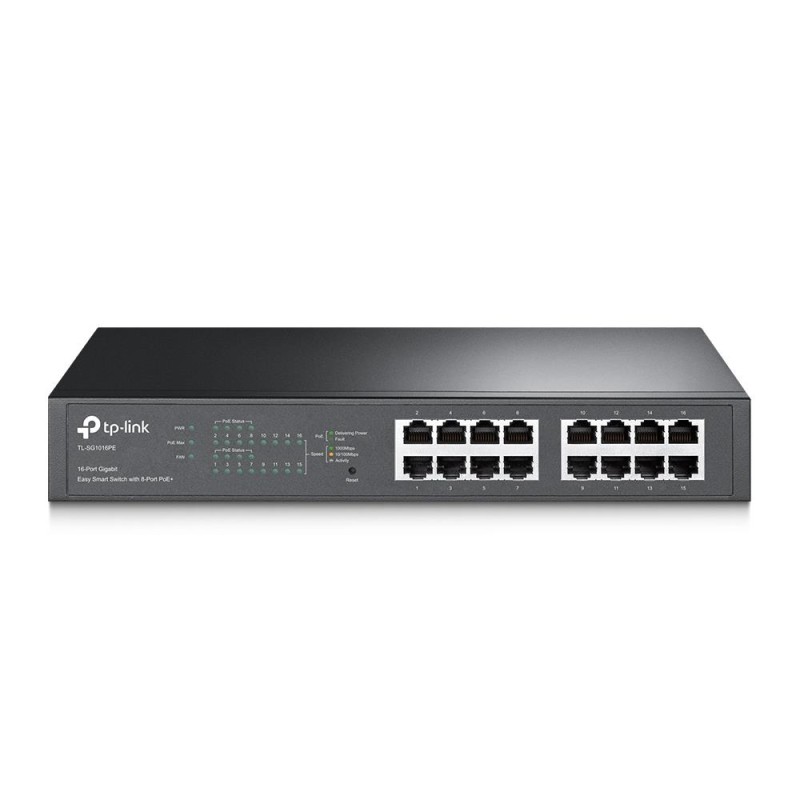

Switch TP-LINK Desktop pedestal 16x10Base-T 100Base-TX 1000Base-T PoE+ ports 8 TL-SG1016PE

Data sheet

Vendor Homepage

https://www.tp-link.com/us/products/details/cat-41_TL-SG1016PE.html

Model name

16-Port Gigabit Easy Smart Switch with 8-Port PoE+

Garantija

60

Category Code

SWI

Unit Box Height

0.25

Unit Box Length

0.4

Unit Box Width

0.08

Units per Shipping Box

8

Unit Calculated Volume

0.01026 cubm

Unit Calculated Weight

2.44 kg

Summary

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entri

Weight & dimensions (Width)

294 mm

Weight & dimensions (Depth)

180 mm

Weight & dimensions (Height)

44 mm

Packaging data (Package width)

250 mm

Packaging data (Package depth)

400 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

2260 g

Packaging content (Cables included)

AC

Power (Power source)

AC/PoE

Packaging data (Package type)

Box

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

0 - 40 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Sustainability (Sustainability compliance)

Yes

Performance (Compatible operating systems)

Windows

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

124.4 W

Design (Housing material)

Metal

Design (Number of fans)

1 fan(s)

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Packaging content (User guide)

Yes

Design (LED indicators)

Yes

Network (Copper ethernet cabling technology)

1000BASE-T/100BASE-TX/10BASE-T

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x

Packaging content (Rack mount kit)

Yes

Management features (Switch layer)

L2

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

16

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

23.8 Mpps

Data transmission (Switching capacity)

32 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Ports & interfaces (Power connector)

AC-in jack

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e/Cat6

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4.1 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

10000

Data transmission (Jumbo frames support)

Yes

Design (Stackable)

No

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

16

Network (Number of VLANs)

4000

Network (Virtual LAN features)

Port-based VLAN/Tagged VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

110 W

Power over Ethernet (PoE) (Power over Ethernet (PoE) power per port)

30 W

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

8

Data transmission (Number of queues)

4

Performance (Maximum cable length)

100 m

Packaging data (Resource CD)

Yes

Specific References

ean13

6935364098865

MPN

1223719
