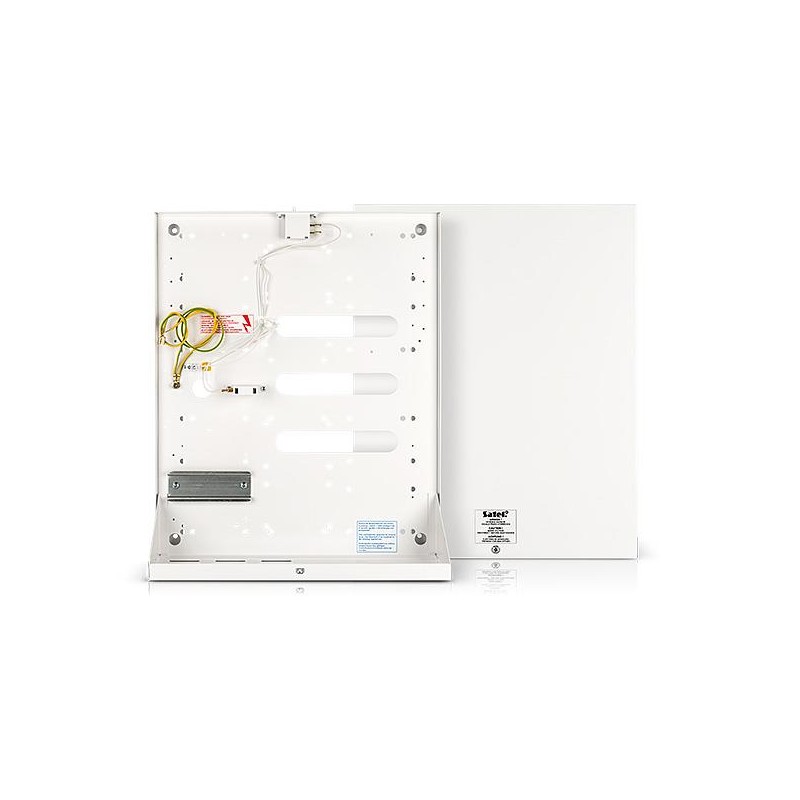

CONTROL PANEL METAL OMI-5 SATEL

OMI-5 is a robust surface-mounted metal enclosure, designed for installation of SATEL control panels, modules and expanders in various configurations. The enclosure meets the requirements specified in EN 50131 for Grade 3.

It is provided with double tamper protection: against opening cover and removing enclosure from the wall. The enclosure has space for 17 Ah battery. The integrated DIN rail allows quick installation of e.g. APS-612 and APS-412 power supplies. You can also use the accessory OMI-5 DIN rails and the OMI PI-5 set of plastic inserts and supports, which further simplifies mounting of control panels and modules.


• complies with requirements of EN 50131 Grade 3
• double tamper protection
• dimensions: 328 x 406 x 120 mm
• you can mount APS-612 or APS-412 power supply inside (DIN rail)
• can accommodate 17 Ah battery
• optionally, you can use:
  • additional DIN rail (OMI-5 DIN) for mounting INT-ORS and INT-IORS expanders
  • a set of plastic mounting inserts and supports (OMI-5 PI) for SATEL devices:
    • alarm panels
    • expansion modules
    • GSM communication modules
    • ACCO door controllers with or without power supply
    • ACCO-NT access control panels
