LANCOOL 217 INF continues our signature high-efficiency airflow design with an infinity mirror front panel for a striking visual effect, while dual tempered glass cutouts ensure ample airflow.
INNOVATIVE DESIGN AVAILABLE IN TWO COLORS
LANCOOL 217 INF comes in black and white, ensuring a perfect match with any setup style. With pre-installed RGB fans and infinity lighting, it delivers a unified and visually striking look.
INFINITY MIRROR, TOTAL CONTROL
With L-Connect 3, users can wirelessly control fan speed and ARGB lighting, including the front panel’s infinity mirror. When paired with the L-Wireless controller, it delivers synchronized lighting effects across compatible devices for a seamless and immersive setup.
LIGHTING CONTROL, MADE SIMPLE
The top I/O panel integrates an M1 button for front panel lighting and an M2 button for fan lighting effects, allowing easy customization of illumination styles. Users can choose between three lighting control methods: through L-Connect 3 (wireless controller required), via the I/O buttons, or by using motherboard sync.
After switching to wireless mode, users can customize LANCOOL 217 INF’s lighting effects and fan speeds through L-Connect 3, creating their own seamless wireless ecosystem. The dual-zone lighting control allows users to adjust the lighting of the fans and the infinity mirror together or separately for a more personalized setup.
In default mode, both 170 mm and 140 mm fans run via PWM sync with the motherboard. In wireless mode, L-Connect 3 enables independent control of fan speed and lighting for a customized setup.
MASSIVE AIRFLOW, EFFORTLESS COOLING
The LANCOOL 217 INF is equipped with high-performance front and rear fans, plus additional fan mounting options at the top and bottom of the chassis. This flexible airflow setup maximizes heat dissipation and ensures smooth, stable performance for all internal components.
To maximize cooling performance, the front features two large 170 mm fans (30 mm thick) with FDB bearings for low noise and extended lifespan. Compared with previous models, the LANCOOL 217 INF reduces noise by 1 dBA while improving airflow efficiency.
The rear features a 140 mm fan (30 mm thick) that efficiently exhausts heat, maintaining stable airflow and optimal system temperature.
The front fans come with a metal mesh dust filter that prevents dust intake and accidental fan contact. The filter can be easily detached for quick cleaning.
Independently tested by the PPLP Lab, the LANCOOL 217 INF delivers exceptional thermal performance, ranking among the top of its class. Its optimized airflow structure and powerful cooling capacity earned it the PPLP “S-Class” Thermal Performance Rating, proving its superior temperature management.
Flexible Installation Options
The LANCOOL 217 INF includes screws for 120 mm fan installation, allowing users to mount fans on the PSU shroud for additional airflow. Alternatively, two 120 mm fans can be installed beneath the PSU cover to create more space and improve internal cooling flexibility.
FLEXIBLE DESIGN, VERSATILE LAYOUTS
The PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.
DUAL PSU MOUNTING,FLEXIBLE BUILDS
The LANCOOL 217 INF supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.
Mid-tower chassis engineered for high-volume airflow with a bold infinity-mirror front aesthetic
Dual 170 mm front fans + 140 mm rear fan deliver strong, efficient system cooling
Tempered-glass front panel with precision cutouts and integrated infinity-mirror lighting
Supports wireless fan and ARGB lighting control through L-Connect 3 (L-Wireless controller required), I/O buttons, or motherboard sync
Compatible with back-connect motherboards for cleaner cable routing and a streamlined build
Certified PPLP S-Class Thermal Performance for reliable cooling under demanding loads

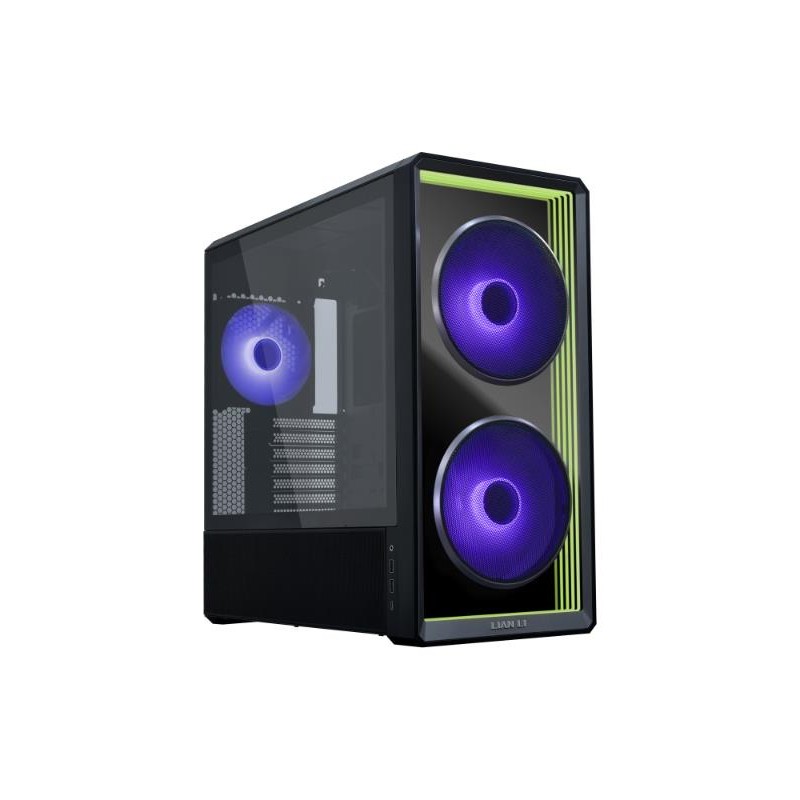

Lian Li Lancool 217 INF. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 2 x 170 mm, Rear fans installed: 1x 140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 3.5,2.5". Width: 238 mm, Depth: 482 mm, He
Weight & dimensions (Width)
238 mm
Weight & dimensions (Depth)
482 mm
Weight & dimensions (Height)
503 mm
Design (Product colour)
Black
Ports & interfaces (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
2
Design (Form factor)
Midi Tower
Design (Illumination)
Yes
Design (Illumination colour)
Multi
Design (Type)
PC
Design (Anti-dust filter)
Yes
Design (Illumination location)
Front
Design (Material)
Steel/Tempered glass
Design (Maximum CPU cooler height)
180 mm
Design (Maximum graphics card length)
380 mm
Design (Maximum PSU length)
220 mm
Design (Number of 2.5" bays)
2
Design (Number of 3.5" bays)
1
Design (Number of expansion slots)
7
Design (On/off button)
Yes
Design (RGB control button)
Yes
Design (Side window)
Yes
Design (Suitable for)
Home/Office
Design (Supported motherboard form factors)
ATX/EATX/micro ATX/Mini-ITX/SSI EEB
Power supply (Power supply included)
No
Ports & interfaces (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
