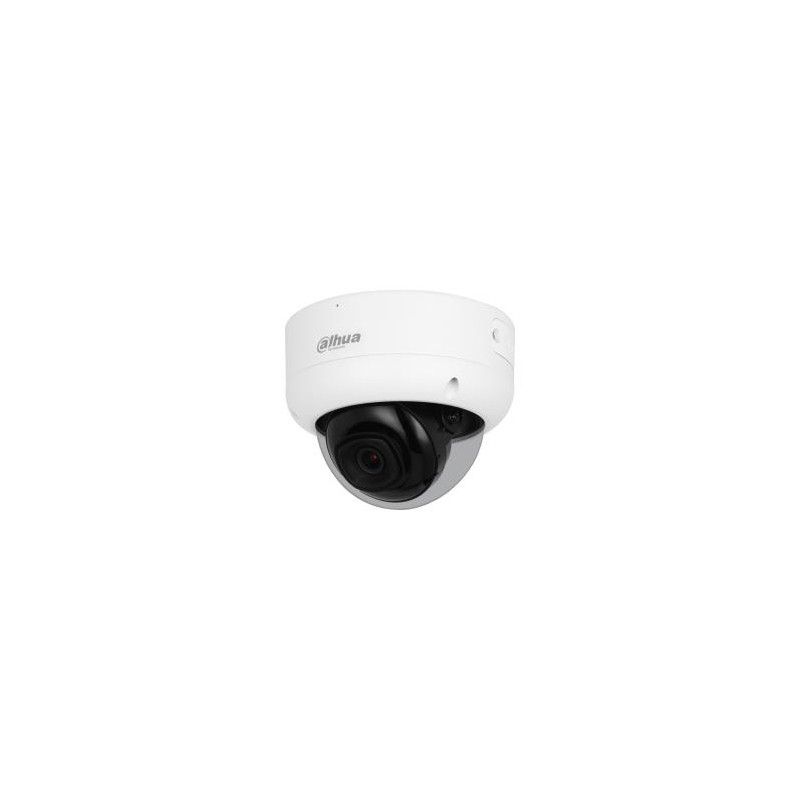

NET CAMERA 4MP IR DOME DAHUA

Data sheet

Vendor Homepage

https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/IR/IPC-HDBW3441E-AS-S2 S2

Garantija

36

Model

IPC-HDBW3441E-AS-S2

Category Code

FNC

Unit Box Height

0.155

Unit Box Length

0.155

Unit Box Width

0.135

Units per Shipping Box

20

Unit Calculated Volume

0.004214 cubm

Unit Calculated Weight

0.745 kg

Summary

Dahua Technology WizSense IPC-HDBW3441E-AS-S2. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Black, Form factor: Spherical. Minimum illumination: 0

Weight & dimensions (Width)

89.1 mm

Weight & dimensions (Depth)

111.7 mm

Weight & dimensions (Weight)

516 g

Packaging data (Package weight)

670 g

Performance (Certification)

CE-LVD:EN62368-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Operational conditions (Operating temperature (T-T))

-40 - 60 C

Operational conditions (Storage temperature (T-T))

-40 - 60 C

Audio (Audio output channels)

1.0 channels

Network (Bluetooth)

No

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Design (Product colour)

Black/White

Design (Form factor)

Spherical

Camera (Camera shutter speed)

1/3 - 1/100000 s

Storage (Compatible memory cards)

MicroSD (TransFlash)

Storage (Maximum memory card size)

256 GB

Power (Power source type)

PoE

Storage (Card reader integrated)

Yes

Performance (Wide Dynamic Range (WDR))

Yes

Audio (Built-in microphone)

Yes

Network (Ethernet interface type)

100 Gigabit Ethernet/Fast Ethernet

Design (IK code)

IK10

Design (International Protection (IP) code)

IP67

Design (Mounting type)

Ceiling/Wall/Desk

Performance (Connectivity technology)

Wired

Performance (Day/night mode)

Yes

Performance (Placement supported)

Indoor & outdoor

Performance (Type)

IP security camera

Camera (Lens viewing angle, diagonal)

355

Camera (Lens viewing angle, horizontal)

355

Camera (Lens viewing angle, vertical)

75

Image sensor (Optical sensor size)

1/2.9 "

Night vision (LED type)

IR

Night vision (Night vision)

Yes

Night vision (Night vision distance)

50 m

Video (Frame rate)

30 fps

Video (Maximum resolution)

2688 x 1520 pixels

Video (Noise reduction)

Yes

Video (Noise reduction technology)

3D noise reduction

Video (Privacy masking)

Yes

Video (Total megapixels)

4 MP

Storage (Built-in HDD)

No

Security (Intelligent Video Surveillance (IVS) system features)

Intrusion/Tripwire

Power (DC output voltage)

12

Packaging content (Number of cameras)

1

Image sensor (Sensor type)

CMOS

Security (Alarm input channels)

1

Security (Alarm output channels)

1

Lens system (Fixed focal length)

6 mm

Audio (Audio input channels)

1.0 channels

Performance (Alarm input/output)

Yes

Camera (Minimum illumination)

0.0005 lx

Video (Back Light Compensation (BLC))

Yes

Video (Highlight Compensation (HLC))

Yes

Camera (Adjustment shutter speed)

Auto/Manual

Image sensor (Progressive scan)

Yes

Lens system (Fixed focus)

Yes

Video (Gain control type)

Auto

Camera (Camera shutter type)

Electronic

Video (Region of Interest (ROI) encoding)

Yes

Security (Video motion detection)

Yes

Video (Video compression formats)

H.264/H.264B/H.264H/H.265/M-JPEG

Camera (Angle of rotation)

355

Camera (Pan range)

0 - 355

Camera (Tilt angle range)

0 - 75

Camera (White balance)

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Video (Bit rate control)

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Video (Video streaming)

Yes

Audio (Audio formats supported)

G.711/G.723/G.726/PCM

Night vision (Number of illumination LEDs)

3

Network (Number of users)

20 user(s)

Security (Mirror)

Yes

Lens system (Detect distance)

124 m

Audio (Bit rate range)

3 - 8192 Kbit/s

Camera (Number of Privacy masking areas)

4

Specific References

ean13

6923172541536

MPN

1452890
