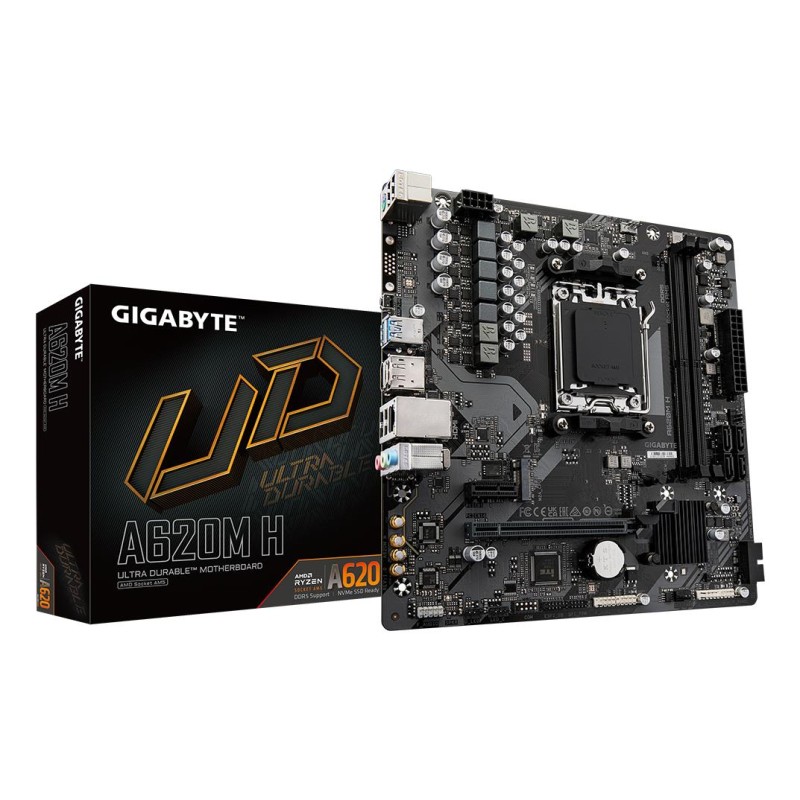

Mainboard GIGABYTE AMD A620A SAM5 Micro-ATX Memory DDR5 Memory slots 2 A620MH2.2

Data sheet

Vendor Homepage

https://www.gigabyte.com

Garantija

36

Model

A620M H 2.2

Category Code

MBA

Unit Box Height

0.055

Unit Box Length

0.265

Unit Box Width

0.265

Units per Shipping Box

10

Unit Calculated Volume

0.004836 cubm

Unit Calculated Weight

0.925 kg

Summary

GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

230 mm

Weight & dimensions (Depth)

225 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

265 mm

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

897 g

Packaging content (Cables included)

SATA

Battery (Battery type)

CR2032

Technical details (Warranty period)

3 year(s)

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Features (Product colour)

Brown

Logistics data (Products per shipping (inner) case)

1 pc(s)

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

AMD

Features (Component for)

PC

Packaging content (Bundled software)

Norton Internet Security LAN bandwidth management software

Memory (Maximum internal memory)

96 GB

Memory (Memory channels)

Dual-channel

Battery (Battery weight)

3 g

Processor (Compatible processor series)

AMD Ryzen 7000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speed (max))

7200 MHz

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6800/7200 MHz

Memory (Supported memory types)

DDR5-SDRAM

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

5

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (Parallel processing technology support)

Not supported

Internal I/O (12V power connector)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Headphone outputs)

3

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Network (Ethernet interface type)

Gigabit Ethernet

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD A620

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Expansion slots (Number of M.2 (M) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Processor (Maximum internal memory supported by processor)

96 GB

Memory (Supported memory module capacities)

12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Graphics (DirectX version)

12.0

Internal I/O (Total number of SATA connectors)

4

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

BIOS (ACPI version)

5.0

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Memory (ECC сompatibility)

Non-ECC

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Rear panel I/O ports (USB connector type)

USB Type-A/USB Type-C

Expansion slots (PCI Express x1 slots)

1

Expansion slots (PCI Express x16 slots)

1

Specific References

ean13

4719331855512

MPN

1450137
