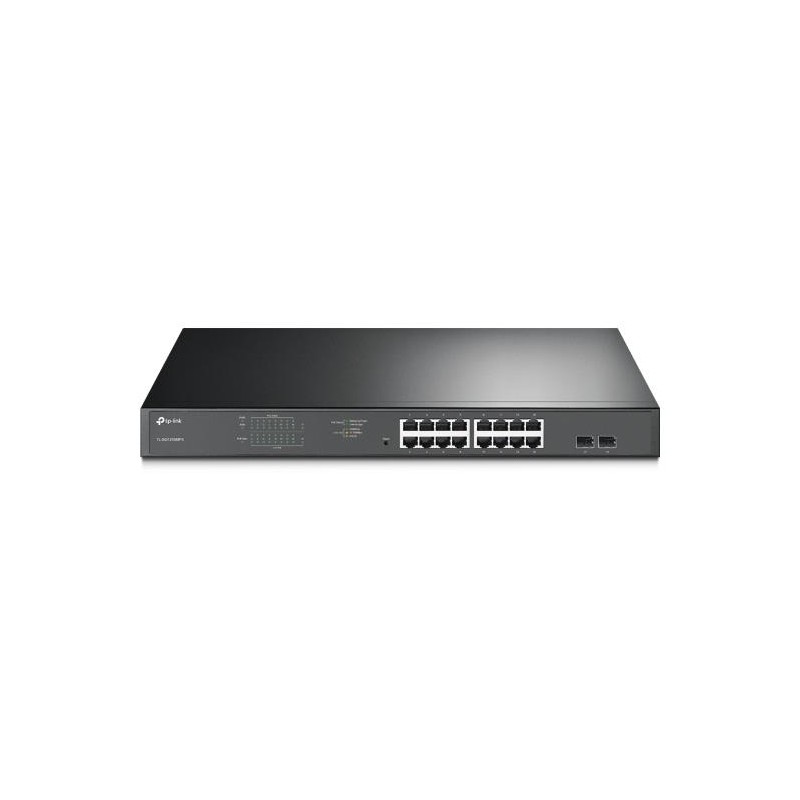

Võrgulüliti TP-LINK TL-SG1218MPE Desktop pedestal Rack 16x10Base-T 100Base-TX 1000Base-T PoE+ ports 16 192 Watts TL-SG1218MP

Lisainfo

Müüja koduleht

https://www.tp-link.com/ae/business-networking/easy-smart-switch/tl-sg1218mpe/

Mudeli nimi

JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

Garantija

60

Category Code

SWI

Unit Box Height

0.08

Unit Box Length

0.53

Unit Box Width

0.25

Units per Shipping Box

1

Unit Calculated Volume

0.0106 cubm

Unit Calculated Weight

3.11 kg

Summary

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 ent

Weight & dimensions (Width)

440 mm

Weight & dimensions (Depth)

180 mm

Weight & dimensions (Height)

44 mm

Packaging data (Package width)

250 mm

Packaging data (Package depth)

528 mm

Packaging data (Package height)

80 mm

Packaging data (Package weight)

2910 g

Packaging content (Cables included)

AC

Power (Power source)

AC

Logistics data (Harmonized System (HS) code)

85176990

Operational conditions (Operating temperature (T-T))

0 - 50 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

-40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50 - 60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

217.22 W

Design (Number of fans)

2 fan(s)

Certificates (Certification)

CE, FCC, RoHS

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Design (Form factor)

1U

Packaging content (User guide)

Yes

Network (Copper ethernet cabling technology)

1000BASE-T/100BASE-TX/10BASE-T

Security (Security algorithms)

SNMP/SNMPv2/SNMPv3

Management features (Web-based management)

Yes

Network (Networking standards)

IEEE 802.1p/IEEE 802.1Q/IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u/IEEE 802.3x

Packaging content (Rack mount kit)

Yes

Management features (Switch layer)

L2

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

16

Ports & interfaces (Basic switching RJ-45 Ethernet ports type)

Gigabit Ethernet (10/100/1000)

Network (10G support)

No

Data transmission (Forwarding rate)

23.8 Mpps

Data transmission (Switching capacity)

36 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Power over Ethernet (PoE) (Power over Ethernet (PoE))

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (VLAN support)

Yes

Network (Cable types supported)

Cat3/Cat4/Cat5/Cat5e/Cat6

Data transmission (MAC address table)

8000 entries

Data transmission (Packet buffer memory)

4.1 MB

Network (Auto MDI/MDI-X)

Yes

Data transmission (Jumbo frames)

9000

Data transmission (Jumbo frames support)

Yes

Network (Auto-negotiation)

Yes

Data transmission (Store-and-forward)

Yes

Operational conditions (Heat dissipation)

741.15 BTU/h

Management features (Quality of Service (QoS) support)

Yes

Ports & interfaces (Gigabit Ethernet (copper) ports quantity)

16

Network (Number of VLANs)

32

Network (Virtual LAN features)

Port-based VLAN

Power over Ethernet (PoE) (Total Power over Ethernet (PoE) budget)

192 W

Ports & interfaces (SFP module slots quantity)

2

Security (Loop protection)

Yes

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Power over Ethernet (PoE) (Power over Ethernet plus (PoE+) ports quantity)

16

Data transmission (Number of queues)

4

Optical fiber (Fiber ethernet cabling technology)

1000BASE-X

Eriviited

ean13

6935364086923

MPN

1279746
