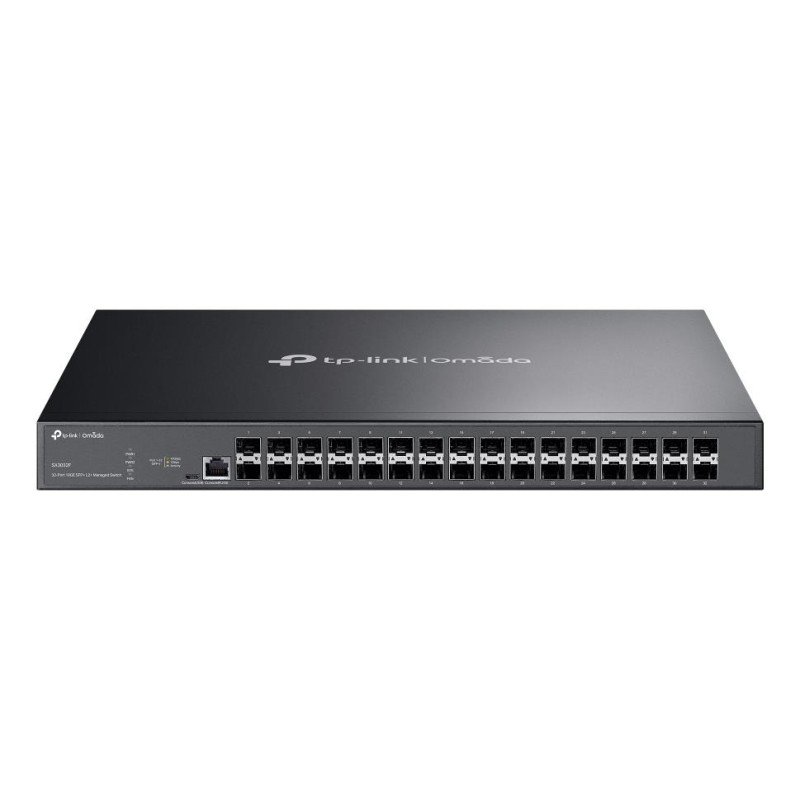

Võrgulüliti TP-LINK SX3032F 32xSFP+ 1xRJ45 SX3032F

Lisainfo

Müüja koduleht

https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/

Mudeli nimi

Omada 32-Port 10GE SFP+ L2+ Managed Switch

Garantija

60

Seeria

SX3032F

Mudel

Omada

Category Code

SWI

Unit Box Height

0.1

Unit Box Length

0.47

Unit Box Width

0.53

Units per Shipping Box

3

Unit Calculated Volume

0.030576 cubm

Unit Calculated Weight

6.65 kg

Summary

TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching

Weight & dimensions (Width)

440 mm

Weight & dimensions (Depth)

330 mm

Weight & dimensions (Height)

44 mm

Packaging content (Quick start guide)

Yes

Packaging content (Cables included)

Power

Power (Power source)

AC

Certificates (Compliance certificates)

CE/Federal Communications Commission (FCC)/RoHS

Operational conditions (Operating temperature (T-T))

-5 - 45 C

Operational conditions (Storage relative humidity (H-H))

5 - 90 %

Operational conditions (Storage temperature (T-T))

40 - 70 C

Design (Product colour)

Black

Power (AC input frequency)

50/60 Hz

Power (AC input voltage)

100 - 240 V

Power (Power consumption (max))

49.4 W

Design (Number of fans)

2 fan(s)

Operational conditions (Operating relative humidity (H-H))

10 - 90 %

Security (Password protection)

Yes

Network (Networking standards)

IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ah/IEEE 802.3x

Management features (Cloud-managed)

Yes

Management features (Switch layer)

L2+

Management features (Switch type)

Managed

Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)

1

Data transmission (Forwarding rate)

240 Mpps

Data transmission (Switching capacity)

640 Gbit/s

Design (Rack mounting)

Yes

Power (Power supply included)

Yes

Network (Broadcast storm control)

Yes

Network (Flow control support)

Yes

Network (Link aggregation)

Yes

Network (Port mirroring)

Yes

Network (Spanning tree protocol)

Yes

Network (VLAN support)

Yes

Security (Authentication type)

AAA,TACACS+

Data transmission (Static route)

Yes

Security (DHCP features)

DHCP relay/DHCP server/DHCPv6 snooping

Data transmission (MAC address table)

32000 entries

Data transmission (Packet buffer memory)

24 MB

Ports & interfaces (Console port)

RJ-45/Micro-USB

Data transmission (Jumbo frames)

9

Data transmission (Jumbo frames support)

Yes

Management features (Quality of Service (QoS) support)

Yes

Network (Number of VLANs)

30

Network (Virtual LAN features)

Protocol-based VLAN/SSID-based VLAN assignment/Tagged VLAN/VLAN mapping/Voice VLAN

Security (Loop protection)

Yes

Network (Rate limiting)

Yes

Security (IGMP snooping)

Yes

Management features (ARP inspection)

Yes

Management features (Configuring Location Settings (CLI))

Yes

Management features (MIB support)

MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC26

Data transmission (Number of queues)

8

Security (Access Control List (ACL))

Yes

Security (Authentication)

MAC-based authentication,Port-based authentication

Security (IP-MAC-Port binding)

Yes

Security (Queue scheduling algorithms)

Priority queuing (PQ)/SP/Weighted Round Robin (WRR)

Security (SSH/SSL support)

Yes

Security (Static port security)

Yes

Multicast features (Multicast Listener Discovery (MLD) snooping)

Yes

Multicast features (Multicast support)

Yes

Protocols (IPv4 & IPv6 features)

Dual stack IPv4/IPv6/ICMPv6/IPv6 TFTP

Network (IPv4 routes)

48

Network (IPv6 routes)

48

Data transmission (Number of static routes)

128

Protocols (GARP VLAN Registration Protocol (GVRP))

Yes

Data transmission (Number of IP interfaces)

128

Ports & interfaces (Installed SFP+ modules quantity)

32

Design (Redundant fans support)

Yes

Multicast features (Number of multicast groups filtered)

4000

Protocols (IP Source Guard (IPSG))

Yes

Eriviited

ean13

4895252504477

MPN

1425271
